OpenCTI Is Not a STIX Database

In this post

We have built many OpenCTI connectors for our products.

Over that time, we’ve learned how OpenCTI actually ingests, transforms, stores, and exports STIX 2.1 — including where it diverges from the specification in ways that matter to producers.

This post is a practical guide for:

developers building OpenCTI connectors
teams exporting STIX for OpenCTI ingestion
architects designing STIX-native pipelines that include OpenCTI

It assumes you already understand STIX 2.1 and want to know how OpenCTI behaves in production.

The most important mental model

OpenCTI is often described as “STIX-native”.

In practice, it is more accurate to think of it as:

a graph platform with its own internal data model
that accepts STIX as an ingestion format
and exports STIX as an interoperability format

It is not a STIX object store.

When you import a STIX bundle:

OpenCTI parses the bundle
objects are validated against OpenCTI rules (not pure STIX spec)
objects are recreated in OpenCTI’s internal schema
unsupported properties, objects, and relationships are dropped
OpenCTI-specific metadata is added
a new STIX representation is generated on export

This process is not lossless.

Nearly every integration surprise comes from misunderstanding this pipeline.

How ingestion actually works

Think of ingestion as a transformation, not storage:

STIX bundle → validation → OpenCTI graph model → OpenCTI metadata → STIX export

Consequences:

IDs may change
properties may disappear
relationships may be rewritten or rejected
markings may be remapped
custom objects may be ignored

If you treat OpenCTI as a canonical STIX store, you will eventually hit sync and fidelity problems.

Custom STIX objects: mostly unsupported

OpenCTI does not support arbitrary custom SDOs/SCOs, even when defined correctly with Extension Definitions.

There are a few hardcoded exceptions (e.g. some MITRE ATT&CK extensions), but in general:

custom object definitions are ignored
custom SDO instances are dropped
dependent relationships may partially import but break

Take this bundle from CTI Butler for CWE-520. Note the use of a custom Weakness SDO (with associated Extension Definition).

Result:

Weakness objects did not import
Extension Definition did not import
relationships were created but invalid (as objects missing)

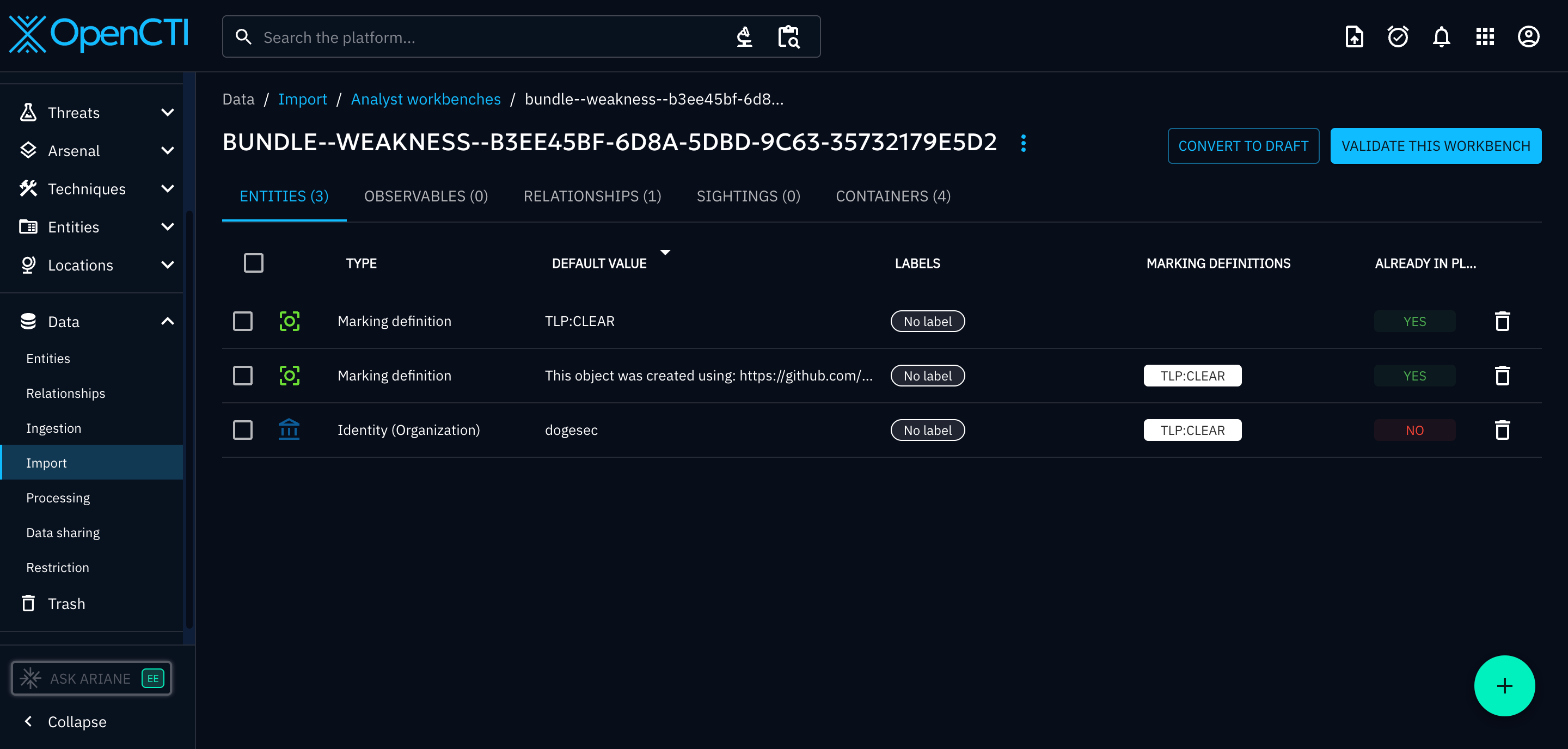

OpenCTI Weakness Import Entities

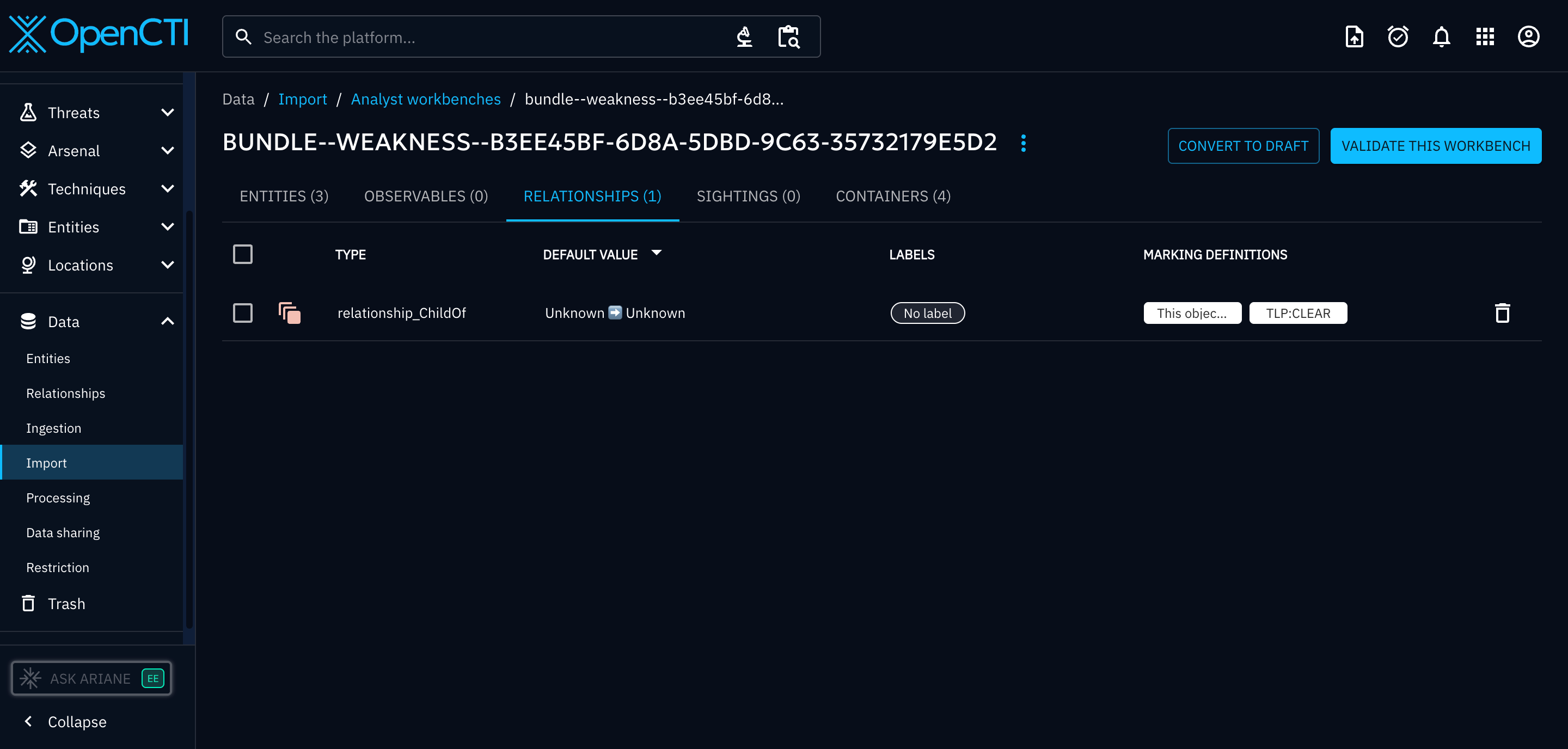

OpenCTI Weakness Import Relationships

This leaves producers with two choices:

accept data loss
transform custom SDOs into core STIX objects before ingestion

In practice, most connectors implement transformation layers.

This is why some OpenCTI connectors cannot expose full knowledge models (e.g. CWE ingestion in our CTI Butler connector).

Custom properties: sometimes survive, usually don’t

Custom properties behave differently from custom objects.

What happens

unsupported custom properties are stripped
Extension Definitions are ignored
object still imports if the core type is supported

Take this bundle from Vulmatch for CVE-2022-27948. Note the use of a custom x_cpe_struct list property inside Software objects (and accompanying Extension Definition).

Before import:

full structured CPE representation exists

    {
      "cpe": "cpe:2.3:o:tesla:model_x_firmware:2022-03-26:*:*:*:*:*:*:*",
      "extensions": {
        "extension-definition--82cad0bb-0906-5885-95cc-cafe5ee0a500": {
          "extension_type": "toplevel-property-extension"
        }
      },
      "id": "software--5ce82760-eec9-5c21-bdf6-aa2e3defcafd",
      "name": "Tesla Model X Firmware 2022-03-26",
      "object_marking_refs": [
        "marking-definition--94868c89-83c2-464b-929b-a1a8aa3c8487",
        "marking-definition--152ecfe1-5015-522b-97e4-86b60c57036d"
      ],
      "spec_version": "2.1",
      "swid": "2DDAA838-E91C-49FC-A3CC-721D5A7A2339",
      "type": "software",
      "vendor": "tesla",
      "version": "2022-03-26",
      "x_cpe_struct": {
        "cpe_version": "2.3",
        "part": "o",
        "vendor": "tesla",
        "product": "model_x_firmware",
        "version": "2022-03-26",
        "update": "*",
        "edition": "*",
        "language": "*",
        "sw_edition": "*",
        "target_sw": "*",
        "target_hw": "*",
        "other": "*"
      },
      "x_created": "2022-04-04T12:38:20.46Z",
      "x_modified": "2022-10-05T14:00:34.4Z",
      "x_revoked": false
    },

After import:

object exists
custom fields gone
OpenCTI metadata added

        {
            "id": "software--372ab49c-b326-5f12-9922-ffb003d050ea",
            "spec_version": "2.1",
            "name": "Tesla Model X Firmware 2022-03-26",
            "cpe": "cpe:2.3:o:tesla:model_x_firmware:2022-03-26:*:*:*:*:*:*:*",
            "swid": "2DDAA838-E91C-49FC-A3CC-721D5A7A2339",
            "vendor": "tesla",
            "version": "2022-03-26",
            "x_opencti_id": "1d7e4f16-ad15-470b-843c-393bf0dec931",
            "x_opencti_type": "Software",
            "type": "software",
            "object_marking_refs": [
                "marking-definition--613f2e26-407d-48c7-9eca-b8e91df99dc9",
                "marking-definition--d328e87d-1265-57ed-b0ef-ec222236e896"
            ]
        },

OpenCTI effectively performs:

retain: core STIX properties
drop: unknown custom properties
add: x_opencti_*

The exception: if you use OpenCTI-supported custom properties (e.g. x_opencti_cvss_vector_string which I talked about in this post), they are preserved. The best authoratitive source we could find that lists all the supported custom properties is here (ctrl+f > “x_”).

Lesson:

If the data must survive ingestion:

prefer core STIX properties
or use OpenCTI-recognized custom fields

Custom relationship types: restricted

STIX allows user-defined relationship types.

OpenCTI does not.

Only a defined set of relationship types are accepted, and only between allowed object pairs. This part of the OpenCTI codebase lists all available relationship types you can use to link objects.

You must also ensure the objects your joining are supported by the relationship type selected, or, you will again, get errrosrs.

If you attempt to import:

unsupported relationship type
or supported type between unsupported entities

You will get ingestion errors or silently broken relationships.

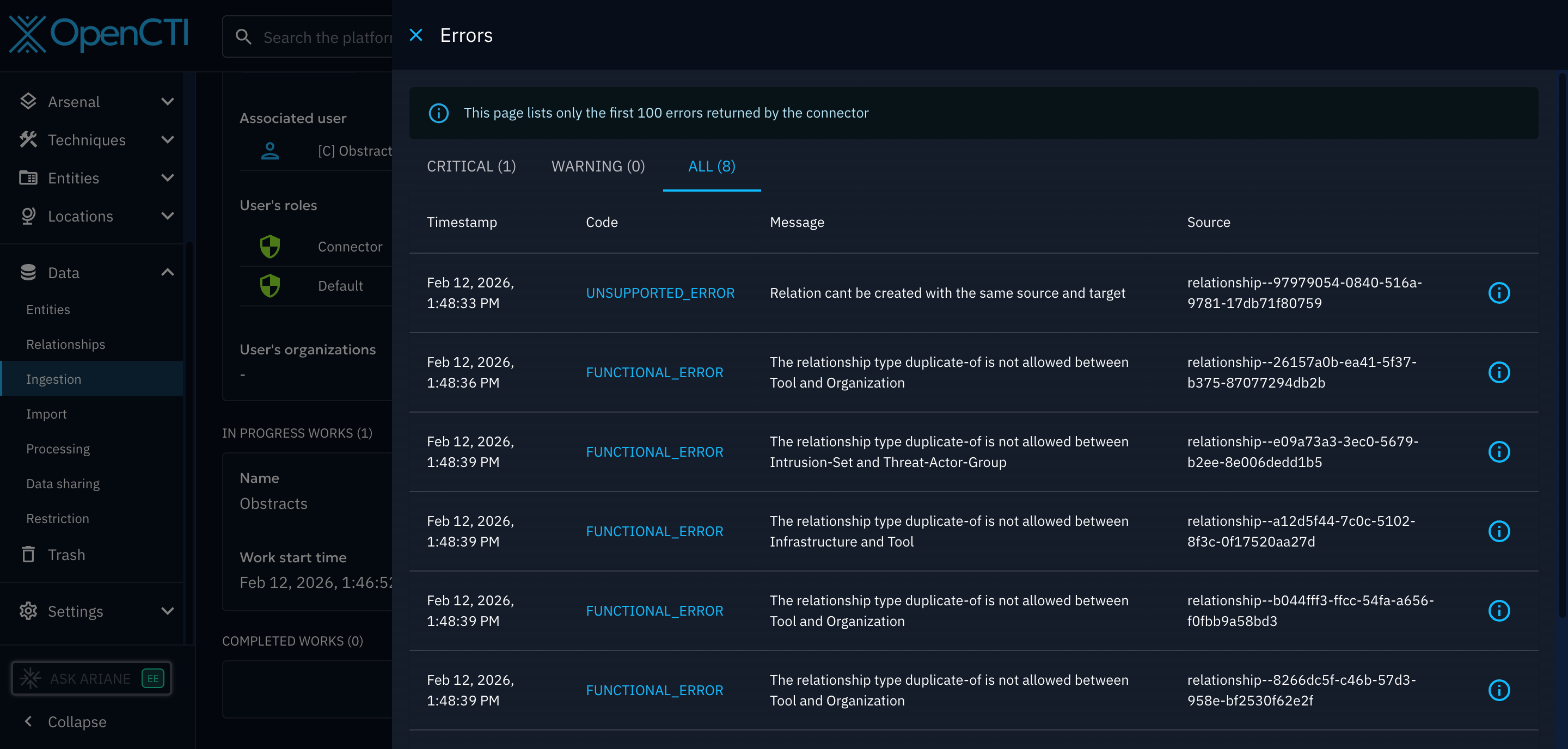

OpenCTI Custom Relationships

This is a major limitation for platforms that encode logic via relationships.

Example: In Vulmatch we use not-vulnerable relationships to indicate when a CPE exists but is not affected. These relationship types must be rewritten inside connectors before ingestion. Whilst possible, this causes fidelity issues between the two products.

The lesson: do not get creative with relationship types. In some of our connectors, we rewrite relationship types inside the connector to solve this issue.

OpenCTI modifies your STIX objects

Every imported object is changed.

Understanding these modifications is critical for sync, deduplication, and exports.

ID rewriting

Even valid STIX IDs may be replaced.

OpenCTI generates deterministic IDs based on object properties to prevent duplicates.

Example:

Attack Pattern IDs depend on (name OR alias) AND x_mitre_id (if exists)

Result:

IDs change unless generated using OpenCTI logic
mapping back to original producers becomes difficult

Exception:

SCOs retain IDs if generated per STIX UUIDv5 rules

So even if you followed the STIX specification, or used a helper like the stix2 library, only the IDs of SCOs imported will match those you originally produced in OpenCTI.

Adding `x_opencti_type`

OpenCTI adds an internal classification layer.

Example:

STIX identity → OpenCTI may classify as type; organization, sector, individual, etc.

This enables UI navigation and filtering.

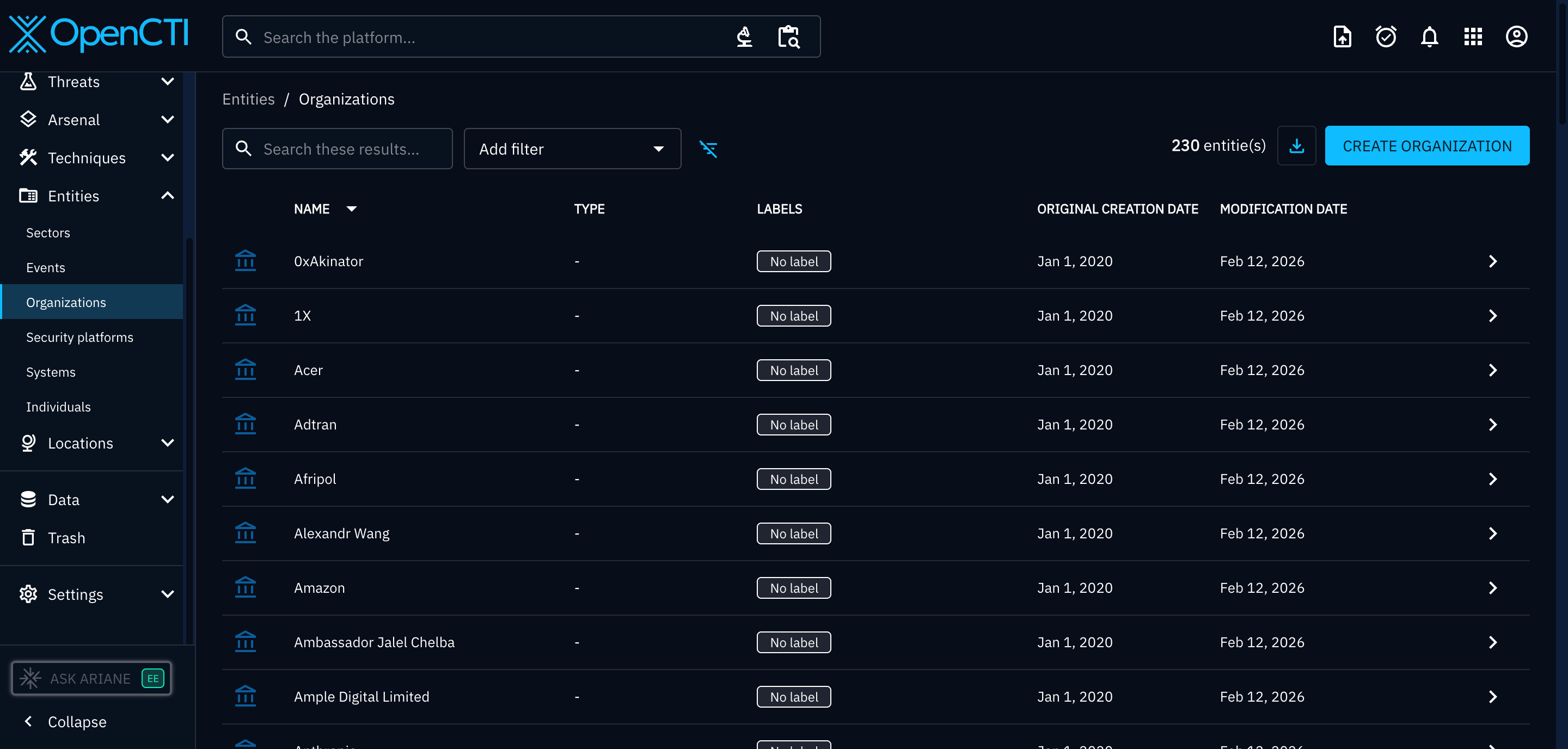

OpenCTI Type

Adding `x_opencti_id`

Every entity receives:

an internal database identifier
non-portable
instance-specific
included in exports

Think of it as a primary key, not an intelligence identifier.

To illustrate;

In OpenCTI instance 1:

id → indicator--1234
x_opencti_id → abc-111

In OpenCTI instance B

id → indicator--1234
x_opencti_id → xyz-999

It’s not an issue on ingest, however, when exporting objects from OpenCTI this property will be included.

Modifying TLP Markings

STIX objects can contain an object_marking_refs property where TLP levels are defined using Marking Definition objects.

We use official STIX 2.1 TLP v2 markings in our tools, but we quickly noticed OpenCTI was always modifying them into a mix of different IDs.

Let me explain the problem by showing you the Marking Definitions between TLPv1/v2:

The official STIX 2.1 TLPv2:CLEAR object id: marking-definition--94868c89-83c2-464b-929b-a1a8aa3c8487
The OpenCTI TLPv2:CLEAR object id: marking-definition--613f2e26-407d-48c7-9eca-b8e91df99dc9
The official STIX 2.1 v1 TLPv1:WHITE object id: marking-definition--613f2e26-407d-48c7-9eca-b8e91df99dc9

Notice how OpenCTI essentially write their own TLP:CLEAR object which inherits the ID of the official STIX 2.1 TLPv1:WHITE object.

If you upload an object with the official STIX 2.1 TLPv2:CLEAR marking, OpenCTI will transform it into their TLPv2:CLEAR marking.

For TLPv2 IDs that don’t exist in v1 (e.g. TLP:AMBER+STRICT), they invent their own.

For reference, here is how OpenCTI define all supported TLPs in the code.

The practical rules

After building multiple production connectors, these are the patterns that consistently work.

Treat OpenCTI as a transformation engine
- Not a STIX database.
Avoid custom SDOs/SCOs
- Translate them into STIX 2.1 core objects before ingestion.
Assume custom properties will be dropped
- are an OpenCTI-supported custom field
Rewrite relationships inside connectors. Use only
- supported types
- supported object pairs
Expect ID drift. Plan for:
- mapping layers
- reconciliation logic
- external identifiers
Never rely on markings remaining unchanged. Treat markings as:
- OpenCTI-managed
- not source-of-truth
